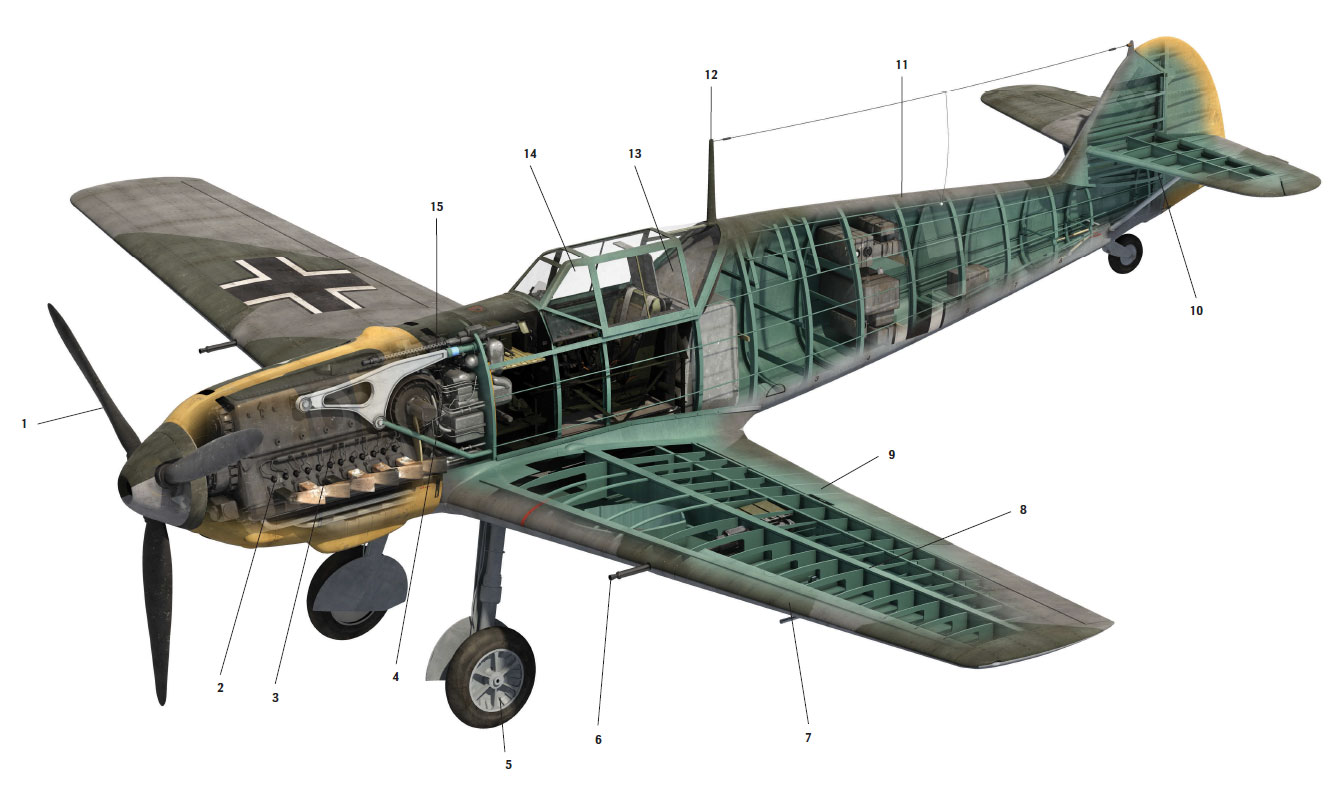

Компоновка Messerschmitt Bf 109E-3
1. Three-blade VDM variable pitch propeller
2. Daimler-Benz DB 601 engine, 12-cylinder inverted-Vee, 1,150hp
3. Exhaust
4. Engine mounting frame
5. Outwards-retracting main undercarriage
6. Two 20mm cannon, one in each wing
7. Automatic leading edge slats
8. Wing structure: All metal, single main spar, stressed skin covering
9. Split flaps
10. All-metal strut-braced tail unit
11. All-metal monocoque fuselage
12. Radio mast
13. 8mm pilot armour plating
14. Cockpit canopy hinged to open to starboard
15. Staggered pair of 7.92mm MG17 machine guns firing through propeller
