Схема расположения привода на одной оси тележки локомотива Eurotunnel Class 9
Вернуться в категорию Eurotunnel Class 9

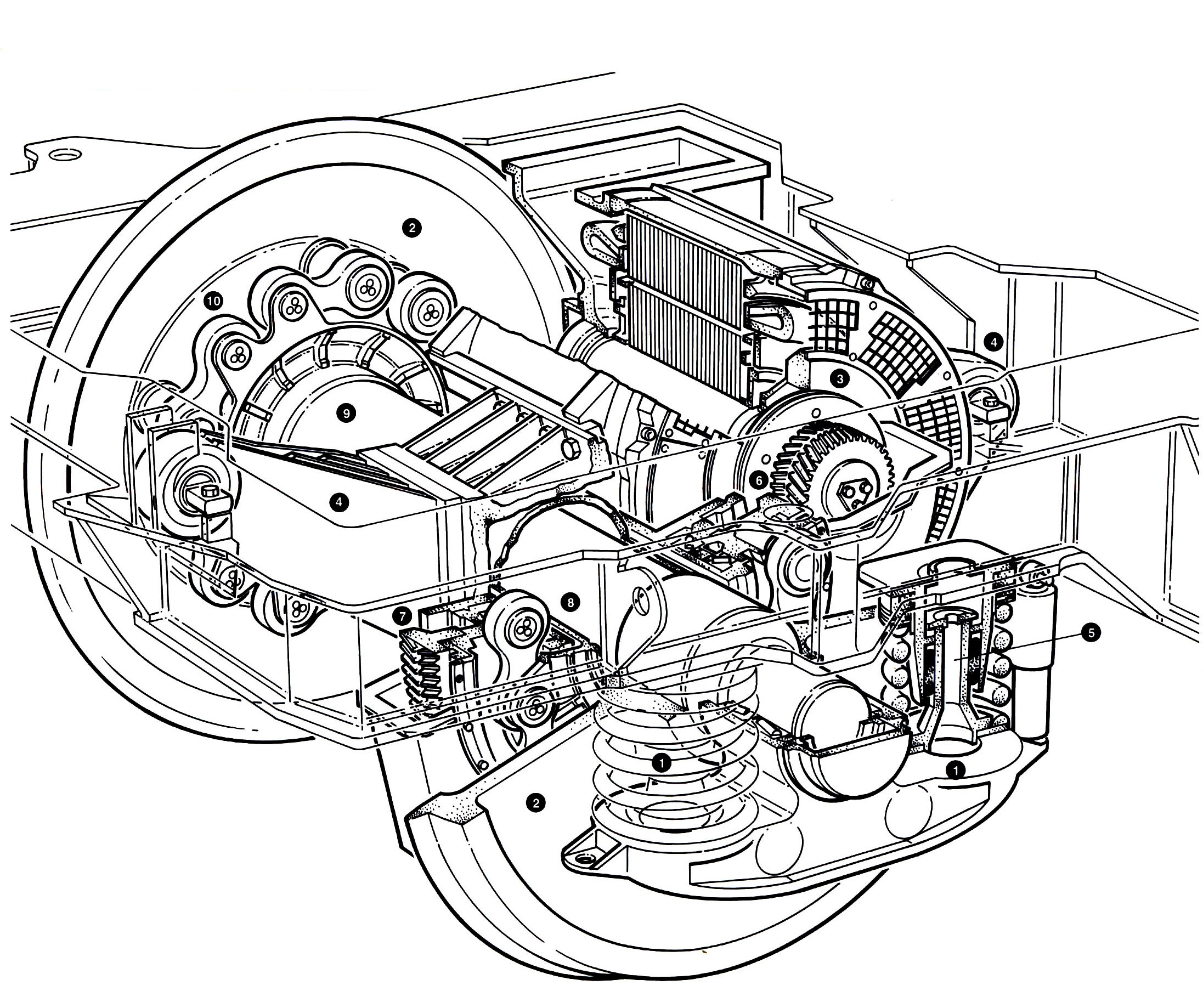

Схема расположения привода на одной оси тележки локомотива Eurotunnel Class 9
1 Primary suspension and axle-box
2 Wheels and axle
3 Asynchronous traction motor
4 Links between motor and bogie frame
5 Cut-out of resilient mounting inside primary suspension
6 Motor pinion (V-shaped gear)
7 Main gear and drive links
8 Links to hollow shaft
9 Hollow shaft
10 Links from hollow shaft to wheel
