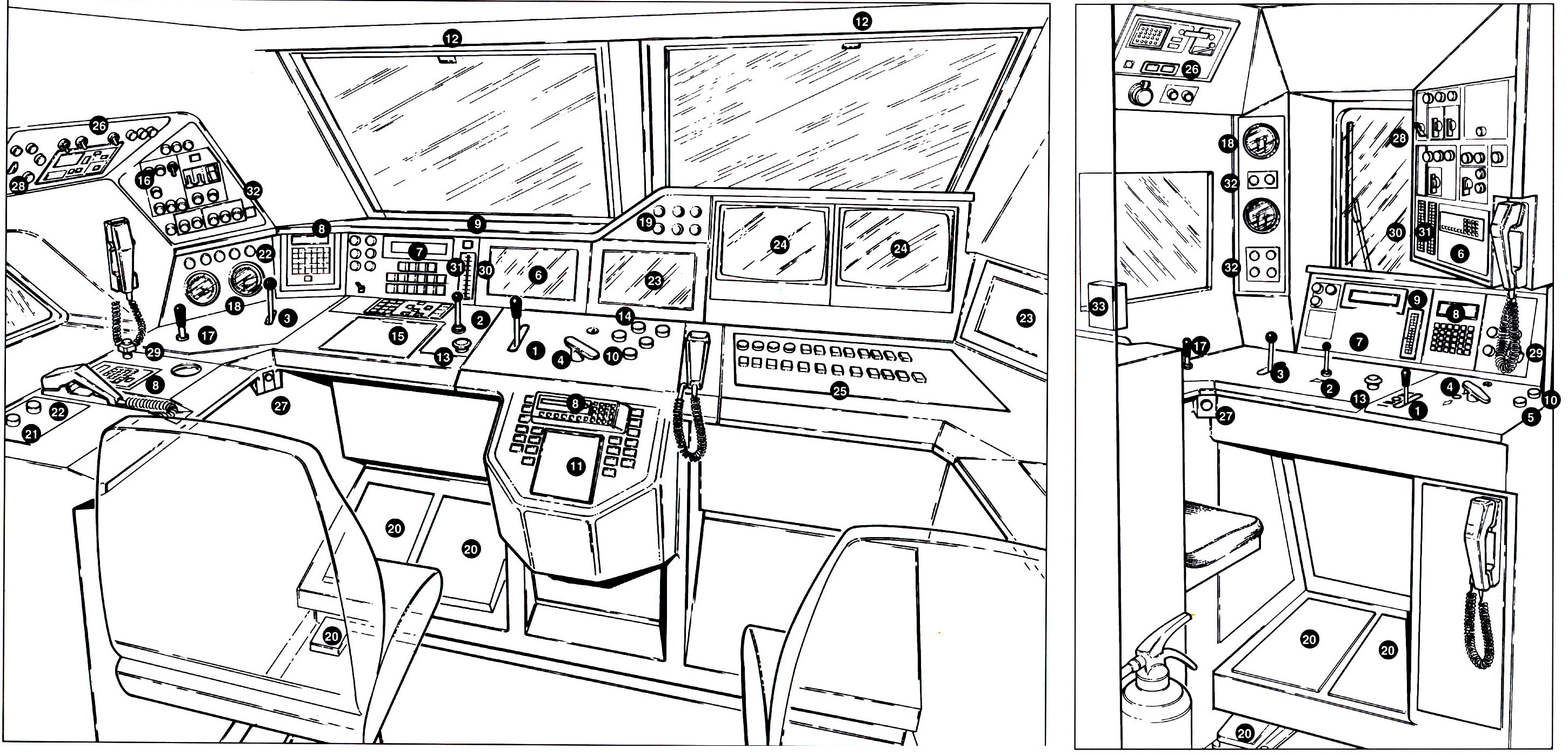

Кабина локомотива Eurotunnel Class 9
1 Main traction and braking control lever
2 Double-tone horn
3 Electro-pneumatic and direct braking
4 Reverser and locking key
5 Automatic speed control on/offswitch
6 Information and diagnostics screen
7 TVM 430 - speed control
8 Radio coding keyboard
9 Speed selection knob
10 Button to initiate automatic starting sequence
11 Radio (combined console also used by train captain)
12 Handle for sun-screen curtain
13 Emergencypantograph lowering
14 Stand-bypush button
15 Information and diagnostic keyboard
16 Miscellaneous control switches
17 Parking brake push-button
18 Brake pressure-gauges
19 Lighting and air-pressure gauge conditioning switches
20 Driver's safety device pedals
21 Locomotive brake isolator
22 Brake test and release button
23 Train captain's touchscreen keyboard
24 Video screens for shuttle wagon supervision
25 Train captain's console and door controls
26 Fire-detection and - activation systems
27 Sanding push-button
28 Pantograph manual preselection
29 Screen-wiper switch
30 Tractive and braking effort ratio indicator
31 Speedometer
32 Pneumatic manual switches
33 Cab temperature control
