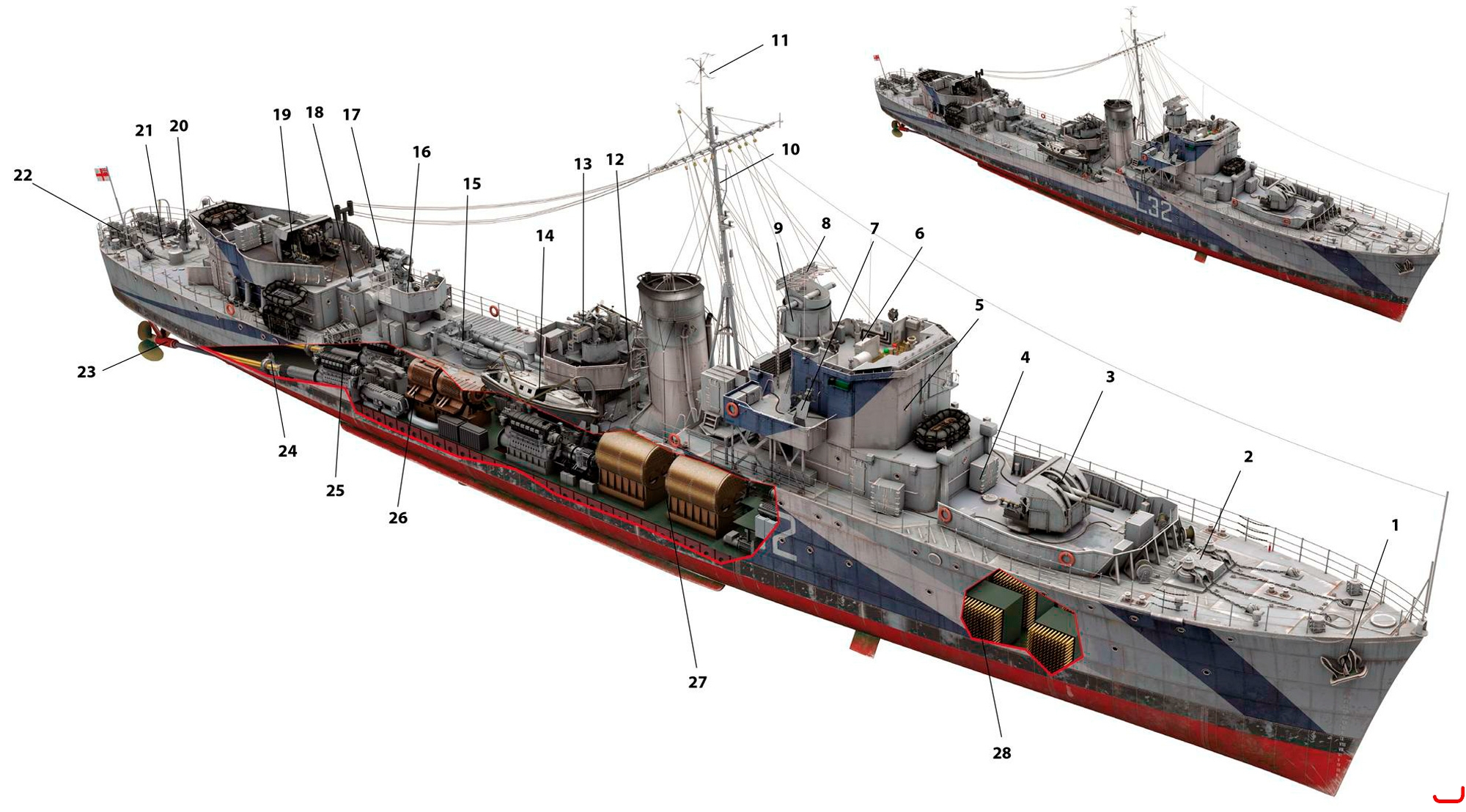

Компоновка миноносца HMS BELVOIR

1. Anchor
2. Anchor cable and capstan
3. ‘A’ twin gun mount (two 4in. QF Mk XVI HA guns)
4. Signal deck
5. Wheelhouse
6. Compass platform/Bridge
7. Single 20mm Oerlikon (one on each bridge wing)
8. Type 285 fire control radar
9. Rangefinder
10. Foremast
11. Type 286P radar aerial
12. ‘Pom-pom’ crew shelter
13. Quadruple 2-pdr ‘pom-pom’
14. Motor cutter (one of two)
15. Twin 21in. torpedo tube
16. Searchlight platform
17. Gun crew shelter
18. Galley funnel
19. ‘X’ twin gun mount (two 4in. QF Mk XVI HA guns)
20. Single 20mm Oerlikon mounting
21. Depth-charge throwers (four on each beam)
22. Depth-charge rack (one of two)
23. Propeller and shaft (one of two – port and starboard)
24. Fuel space (one of four)
25. Gearing room (one of two – port and starboard)
26. Engine room (one of two – port and starboard)
27. Boiler room (one of two – forward and after)
